DT340T Rugged Tablet

DT340T RUGGED TABLET

Slim, Rugged, Multi-functional Wireless Computing

Microsoft® Windows® 10/11 IoT Enterprise, 64bit or Ubuntu

The DT340T rugged tablet combines a 14-inch high-brightness touchscreen with Intel® Core™ i5/i7 vPro® processing in a durable platform built for demanding field, vehicle, industrial, and mobile applications. With Windows® 10/11 IoT Enterprise or Ubuntu, built-in smart card/CAC access, and dual hot-swappable batteries, it delivers workstation-level capability for teams operating beyond the office.

Available options include NVIDIA RTX A1000 or A2000 graphics, 4G LTE/AWS, GPS, and an 8 MP rear camera. With IP65 protection, MIL-STD-810H certification, and operation across a wide temperature range, the DT340T is built for long shifts and harsh environments.

Ideal Uses for the DT340T Rugged Tablet

Vehicle-based operations
Field inspections and mobile data collection
Public safety and emergency response
Utility and energy field crews

Warehousing, inventory, and barcode applications
Mobile teams requiring smart card/CAC access
Outdoor work where sunlight-readable displays matter
Long shifts requiring hot-swappable battery power

Features

14″ high-brightness 1000 nits touchscreen, digital pen support
Intel^® Core™ i7/i5 vPro^® processor
NIST compliant BIOS available
Built-in smart card/CAC reader

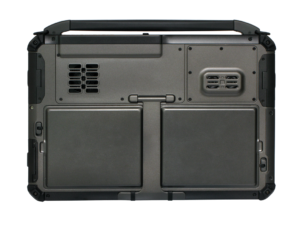

Dual high-capacity, hot-swappable battery packs; up to 180w
IP65-rated for water and dust resistance
MIL-STD-810H for shock and vibration protection
Easy-to-open I/O port caps (patented)

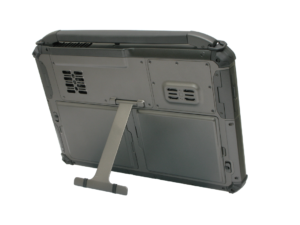

Foldable tabletop stand

Major Options

NVIDIA RTX A1000 or RTX A2000 graphics card
4G LTE/AWS
Dual pass through Antennas for the docking cradle
GPS module
8 MP rear camera

* 4G/LTE Module and Smart card/CAC reader cannot be built onto same device of NVIDIA graphics card SKU.

Specifications

SYSTEM

CPU – Intel_® Core™ i5-1340P, 12-core, up to 4.6 GHz
Intel_® Core™ i7-1370P, 14-core, up to 5.2 GHz
GPU – Optional: RTX A1000 or RTX A2000
RAM – 8GB to 64GB
Storage – 512GB to 2TB flash
Operating System – Microsoft_® Windows_® 10/11 IoT Enterprise, 64bit or Ubuntu
NIST Compliance – NIST compliant BIOS available
Display – 14″ LED-backlit, high-brightness 1,000 nits touchscreen with multi-touch
Display Resolution – 1920 x 1080
Indicator – 1 x power/battery status LED
Smart Card/CAC Reader – Full-slot, reads ISO 7816 T=0, T=1; 1.8/3/5V smart card
Microphone – Built-in microphone with DSP for real-time video streaming
Speaker – Built-in speaker
Buttons – 1 x power button, 2 x programmable buttons

NETWORK INTERFACE

WLAN – Wi-Fi 802.11ax 2.4/5/6 Ghz three band
BT – 5.2

I/O PORTS

HDMI – 1
USB Ports – 1 x USB 3.0, 2 x USB 2.0
Headset Jack – 1 (3.5 mm)
DC-in Jack – 1
Ethernet – 1 x RJ45 connector for Ethernet

MECHANICAL AND ENVIRONMENTAL

AC/DC Adapter – Input: 100 to 240V AC; Output: 19V 65W for w/o GPU SKU and 19V 120W for A1000 SKU
Battery Pack – 2 x 60W Hot-swappable batteries (11.4V, 5400mAh)
(Optional) 2 x 90W Hot-swappable batteries (11.4V, 8000mAh)
Enclosure – ABS + PC plastic and magnesium-aluminum alloy
Dimensions (H x W x D) – 9.6 x 14.8 x 1.16 in/244 x 376 x 29.5 mm
Weight – 6.38 lbs/2.9 kg
Durability – IP65 and MIL-STD-810H certified
Regulatory – FCC Class B, CE, RoHS compliant
Temperature – Operation*: -20°C to 60°C (-4°F to 140°F); tested under MIL-STD-810H method 501.7, Procedure II, and method 502.7, Procedure II
*For battery optimal functionality and performance, the recommended usage temperature range is from 0°C to 50°C (32°F to 122°F)
Storage: -50°C to 70°C (-58°F to 158°F)
Humidity – 0% to 90% non-condensing

MAJOR OPTIONS SPECS

Graphic Card – Integrated Graphics card, NVIDIA RTX A1000 or RTX A2000
Antenna – Dual pass through antennas integrated in the docking cradle
Mobile Broadband – 4G LTE/AWS
Camera – 8 MP rear camera with flash
GNSS – GPS
