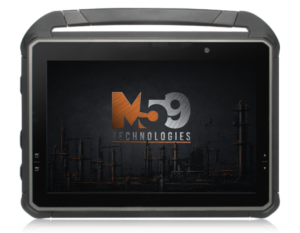

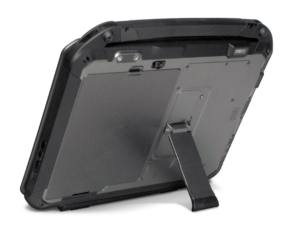

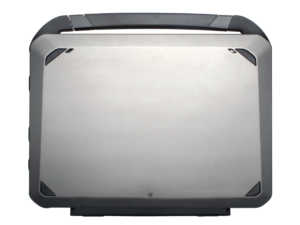

DA302EP Android Rugged Tablet

Full-Size Android Performance for Field and Industrial Work

Android 13 operating system

The DA302EP combines a 10.1-inch sunlight-readable touchscreen with Android 13 and Qualcomm 8-core processing in a rugged, field-ready design. It is built for crews who need a full-size mobile device for inspections, data collection, vehicle use, utilities, industrial operations, and other demanding environments.

A hot-swappable battery supports long shifts, while optional barcode scanning, GPS, 4G LTE, and a slim keyboard let the tablet adapt to different field workflows. IP65 and MIL-STD-810H ratings help it stand up to water, dust, shock, vibration, and wide temperature swings.

Ideal Uses for the DA302EP

Field inspections and mobile data collection
Utility and energy crews
Industrial and plant operations
Vehicle-based fieldwork

Barcode and inventory applications
GPS-enabled mobile operations
Teams needing a larger Android display
2-in-1 use with the optional slim keyboard

Features

10.1″ LED-backlit, sunlight-readable 800 nits touchscreen LCD, digital pen support
Qualcomm_® 8-core processor
Android 13 operating system
Hot-swappable battery for 24/7 operation
Built-in microphone and speaker
Slim keyboard option for 2-in-1 applications
8 MP front camera and 13 MP rear camera
IP65-rated for water and dust resistance
MIL-STD-810H for shock and vibration protection

Major Options

2D barcode scanner (reads 1D and 2D)
4G LTE/AWS
GPS module
*4G module, 2D Scanner and GPS cannot be built onto same device.

Specifications

SYSTEM

CPU – Qualcomm_® 8-core (1.95 GHz to 2.2 GHz)
RAM – 8GB
Storage – 128GB flash
Operating System – Android 13
Display – 10.1″ LED-backlit, sunlight-readable 800 nits touchscreen LCD
Display Resolution – 1920 x 1200
Microphone – Built-in microphone
Speaker – Built-in 2W speaker
Camera – 8 MP front camera and 13 MP rear camera
Buttons – 1 x power button, 2 x brightness buttons, 5 x programmable buttons

NETWORK INTERFACE

WLAN – Wi-Fi 802.11ac, 2.4/5 GHz dual-band
BT – 5.0

I/O PORTS

USB Port – 1 x USB 3.0, 1 x latest USB/charging
Headset Jack – 1 (3.5 mm)
Ethernet Port – 1
DC-in Jack – 1

MECHANICAL AND ENVIRONMENTAL

AC/DC Adapter – Input: 100 to 240V AC; Output: 19V DC, 3.42A
Battery Pack – Hot-swappable battery (11.4V, 3800mAh)
(Optional) 60W Hot-swappable battery (11.4V, 5400mAh)
(Optional) 90W Hot-swappable battery, (11.4V, 8000mAh)
Enclosure – ABS + PC plastics and magnesium-aluminum alloy with anti-microbial coating
Dimensions (H x W x D) – 7.7 x 10.71 x 0.79 in/195.6 x 272 x 20 mm
Weight – 2.84 lbs/ 1.29 kg
Durability – IP65, MIL-STD-810H certified
Regulatory – CE, FCC Class B, RoHS, UL
Temperature – Operation: -10°C to 60°C (14°F to 140°F);
Storage: -55°C to 70°C (-67°F to 158°F)
Humidity – 0% to 90% non-condensing

MAJOR OPTIONS SPECS

Barcode Scanner – 2D barcode scanner (reads 1D and 2D)
GNSS – GPS
Mobile Broadband – 4G
