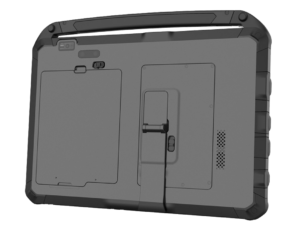

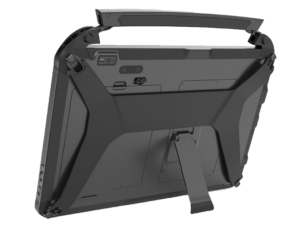

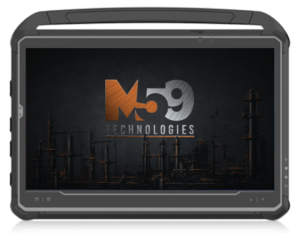

DA323EP Android Rugged Tablet

Large-Screen Android Computing Built for Field Work

Android 13 operating system

The DA323EP combines a 13.3-inch sunlight-readable touchscreen with Android 13 and a Qualcomm 8-core processor in a rugged package designed for field, vehicle, industrial, and mobile work environments. A hot-swappable battery supports long shifts, while optional barcode scanning, GPS, 4G LTE, and a slim keyboard let the device adapt to the way the team works.

Rated IP65 and certified to MIL-STD-810H, the DA323EP is built to handle dust, vibration, shock, and the demands of outdoor conditions without sacrificing a larger, easier-to-read display.

Ideal Uses for the DA323EP

Field inspections and mobile data collection
Utility and energy crews
Industrial and plant operations
Vehicle-based fieldwork

Barcode and inventory applications
GPS-enabled mobile operations
Teams needing a larger Android display
2-in-1 use with the optional slim keyboard

Features

13.3” sunlight-readable touchscreen, digital pen support
Qualcomm_® 8-core processor
Android 13 operating system
Hot-swappable battery for 24/7 operation
Built-in microphone and speaker
Slim keyboard option for 2-in-1 applications
IP65-rated for water and dust resistance
MIL-STD-810H for shock and vibration protection

Major Options

Barcode scanner
4G LTE/AWS
GPS module

Specifications

SYSTEM

CPU – Qualcomm_® 8-core ( 1.8 GHz to 2.0 GHz )
RAM – 8GB
Storage – 128GB flash
Operating System – Android 13
Display – 13.3″ LED-backlit, sunlight-readable 1000 nits touchscreen LCD
Display Resolution – 1920 x 1080
Microphone – Built-in microphone
Speaker – Built-in 2W speaker
Camera – 8 MP front camera and 13 MP rear camera
Buttons – 1 x power button, 2 x brightness buttons, 5 x programmable buttons

NETWORK INTERFACE

WLAN – Wi-Fi 802.11ax, 2.4/5 GHz dual-band
BT – 5.0

I/O PORTS

USB Port – 1 x USB3.2 (Type-A), 1 x USB3.2 latest USB/charging (data and charging)
Headset Jack – 1 (3.5 mm)
Ethernet Port – 1
DC-in Jack – 1

MECHANICAL AND ENVIRONMENTAL

AC/DC Adapter – Input: 100 to 240V AC; Output: 19V DC, 3.42A
Battery Pack – Hot-swappable battery (11.4V, 3800mAh)
(Optional) Hot-swappable battery (11.4V, 5400mAh)
(Optional) Hot-swappable battery (11.4V, 8000mAh)
Enclosure – ABS + PC plastics and magnesium-aluminum alloy with anti-microbial coating
Dimensions (H x W x D) – 7.7 x 10.71 x 0.79 in/195.6 x 272 x 20 mm
Weight – 3.74 lbs/1.7 kg
Durability – IP65, MIL-STD-810H certified
Regulatory – CE, FCC Class B, RoHS, UL
Temperature – Operation: -10°C to 60°C (14°F to 140°F)
Storage: -55°C to 70°C (-67°F to 158°F)
Humidity – 0% to 90% non-condensing

MAJOR OPTIONS SPECS

Barcode Scanner – 2D barcode scanner (reads 1D and 2D)
GNSS – GPS
Mobile Broadband – 4G
