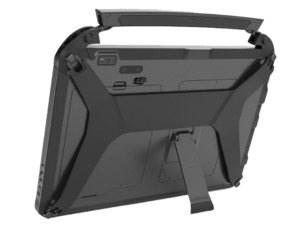

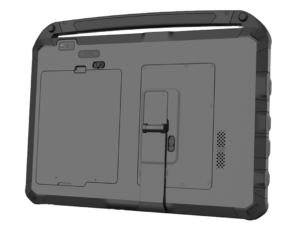

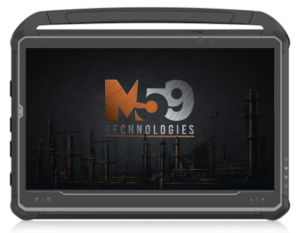

DT323PA Rugged Tablet

DT323PA Rugged TabletRugged Tablet

Slim, Rugged, Multi-functional Wireless Computing

Microsoft® Windows® 11 IoT Enterprise operating system

The DT323PA rugged tablet combines a 13.3-inch sunlight-readable touchscreen with Intel® Core™ Ultra processing in a durable platform built for demanding field, vehicle, industrial, and mobile applications. With Windows 11 IoT Enterprise, digital pen support, a hot-swappable battery system, and quick-access SSD storage, it delivers full computing capability for teams working beyond the office.

Options available include 4G LTE/5G, GPS, 2D barcode scanning, cameras, smart card/CAC access, NFC/RFID, and a detachable keyboard for 2-in-1 applications. With IP65 protection and MIL-STD-810H/461G certification, the DT323PA is built for long shifts and harsh operating environments.

Ideal Uses for the DT323PA Rugged Tablet

Vehicle-based operations
Field inspections and mobile data collection
Public safety and emergency response
Utility and energy field crews

Warehousing, inventory, and barcode applications
Mobile teams requiring smart card/CAC access
Outdoor work where sunlight-readable displays matter
Long shifts requiring hot-swappable battery power

Features

13.3” sunlight-readable touchscreen, digital pen support
Intel_® Core™ Ultra 5/7 processor
Microsoft_® Windows_® 11 IoT Enterprise operating system
NIST compliant BIOS available
Hot-swappable battery for 24/7 operation
Built-in microphone and speaker
Detachable keyboard option for 2-in-1 applications
IP65 rated, MIL-STD-810H and MIL-STD-461G certified
Quick access SSD
Energy Star 9.0 certified

Major Options

5 MP front camera and 13 MP back camera
2D barcode scanner (reads 1D and 2D)
GPS module
4G LTE/5G
Smart card/CAC reader
NFC/RFID reader

Specifications

SYSTEM

CPU – Intel_® Core™ Ultra 5 processor 225U, 12 core (up to 4.80 GHz)
Intel_® Core™ Ultra 7 processor 255U, 12 core (up to 5.20 GHz)
RAM – Ultra 5: 16GB LPDDR5
Ultra 7: 32GB to 64GB LPDDR5
* The memory is embedded. Alternative configurations are available by special order with MOQ
Storage – 512GB to 2TB
*Support quick access SSD function to easily replace the SSD without opening the back cover
Operating System – Microsoft_® Windows_® 11 IoT Enterprise
NIST Compliance – NIST compliant BIOS available
Display – 13.3” LED-backlit, sunlight-readable 1000 nits touchscreen
Display Resolution – 1920 x 1080
Microphone – Built-in microphone
Speaker – Built-in speaker
Buttons – 1 x power button; 2 x brightness buttons; 5 x programmable buttons

NETWORK INTERFACE

WLAN – Wi-Fi 802.11ax, 2.4/5/6 GHz three band
BT – 5.3

I/O PORTS

USB Port – 1 x USB 3.0, 1 x latest USB/charging
Headset Jack – 1 (3.5 mm)
Ethernet Port – 1 x Ethernet 10/100/1000MB Base-T LAN
DC-in Jack – 1

MECHANICAL AND ENVIRONMENTAL

AC/DC Adapter – Input: 100 to 240V AC; Output: 19V DC, 3.42A
Battery Pack – 43W Hot-swappable battery (11.4V, 3800mAh)
(Optional) 60W Hot-swappable battery (11.4V, 5400mAh)
(Optional) 90W Hot-swappable battery, (11.4V, 8000mAh)
Enclosure – ABS + PC plastic and magnesium-aluminum alloy
Dimensions (H x W x D) – 12.8 x 10.7 x 0.8 in/325 x 273.5 x 20 mm
Weight – 3.81 lbs/1.72 kg
Durability – IP65, MIL-STD-810H and MIL-STD-461G certified
Regulatory – CE, FCC Class B, IC, CB, RCM, IEC 60601-1, IEC62680, EPEAT, Energy star 9.0
Temperature – Operation: -10°C to 60°C (14°F to 140°F);
Storage: -50°C to 70°C (-58°F to 158°F)
Humidity – 0% to 90% non-condensing

MAJOR OPTIONS SPECS

Barcode Scanner – 2D barcode scanner (reads 1D and 2D)
Camera – 5 MP front camera and 13 MP back camera
GNSS – GPS
Mobile broadband – 4G LTE/5G
Smart Card/CAC Reader – Half-slot (supports ISO 7816 T=0, T=1); 1.8V/3V/5V smart card
NFC/RFID Reader – HF 13.56 MHz, ISO 15693, 14443A(B) and 18000-3 Mode 1
