The LT330 Rugged Laptop combines a 13.3-inch high-brightness touchscreen, Intel Core i5/i7 processing, and a full-size backlit keyboard in a rugged platform built for demanding field and mobile environments. A built-in smart card/CAC reader supports secure authentication and data access, while optional MIL-STD-3009 Class B night-vision display configurations provide readable operation in low-light environments and compatibility with NVGs. With IP65 protection, MIL-STD-810H and MIL-STD-461G certification, dual hot-swappable batteries, and a wide operating temperature range, the LT330 is built for reliable operation in harsh, mission-critical environments.

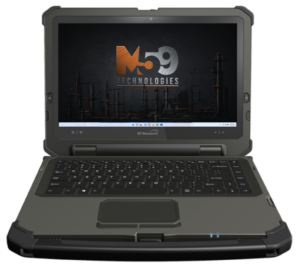

LT330 Rugged Laptop
Purpose-Built for Mission-Critical Environments
Microsoft® Windows® 10/11 IoT Enterprise operating system
Ideal Uses for the LT330 Rugged Laptop
- Public safety
- Utility and energy operations
- Industrial inspections
- Vehicle-based operations
- Secure field computing
- Mission-critical applications
Features
- 13.3” high-brightness 1000 nits touchscreen, digital pen support
- Intel® Core™ i5/i7 processor
- Microsoft® Windows® 10/11 IoT Enterprise operating system
- Backlit keyboard with multi-touchpad
- Fanless, robust design with antimicrobial coating
- Built-in smart card/CAC reader (full-slot)
- Dual RAM slots, up to 64GB
- Dual hot-swappable batteries for 24/7 operation
- Modular design to easily replace the SSD and batteries
- IP65-rated for water and dust resistance
- MIL-STD-810H for shock and vibration protection
- MIL-STD-461G for EMI and EMC tolerance
- HERO (Hazard of Electromagnetic Radiation to Ordnance) certified
Major Options
- MIL-STD-3009 class B night vision screen
- Front full-HD camera
- 4G LTE/AWS
- GPS module
Specifications
- CPU – Intel® Core™ i5-1240P, 12-core, up to 4.4 GHz
Intel® Core™ i7-1260P, 12-core, up to 4.7 GHz - RAM – 8GB to 64GB (dual-slot)
- Storage – 512GB to 2TB SSD
- Operating System – Microsoft® Windows® 10/11 IoT Enterprise
- NIST Compliance – NIST compliant BIOS available
- WLAN – Wi-Fi 802.11ax, 2.4/5 GHz dual band
- Smart Card/CAC Reader – Full-slot, reads ISO 7816 T=0, T=1; 1.8/3/5V smart card
- Microphone – Built-in microphone
- Speaker – Built-in speaker
- Buttons – 1 x power button, 2 x programmable buttons, 2 x brightness control buttons, 1 x NVIS/Normal toggle
- Screen Size – 13.3″ touchscreen; 16.7M colors
- Display Resolution – 1920 x 1080
- Luminance – Standard High-Brightness (1000 nits)
Optional night vision screen – Option 1
Daylight mode: 800 nits; NVIS mode: 0 to 20 nits. MIL-STD-3009 Class B compliant, providing clear readability of the display with naked eyes in dark environments and does not interfere with NVGs.
Optional night vision screen – Option 2
Daylight mode: 800 nits; NVIS mode: 0 to 0.7 nits. MIL-STD-3009 Class B compliant, providing clear readability of the display with NVGs in dark environments. - Contrast Ratio – 800 (typical)
- Optical Response Time – 25 msec (typical)
- Keys – QWERTY, full row of F1 to F12 function keys
Keys for Windows shortcuts, media controls, screen brightness - Backlight – Yes
- TouchPad – Multi-touch

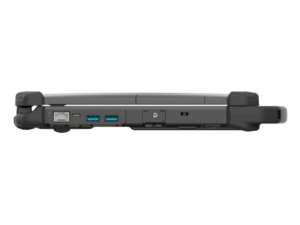

- USB Port – 2 x USB 3.0, 1 x latest USB/charging
- Ethernet – Ethernet 10/100/1000 MB Base-T LAN
- COM Port – 1
- HDMI-out – 1
- Audio Jack – 1 (3.5 mm)
- DC-in Jack – 1
- Kensington Lock – 1
- AC/DC Adapter – Input: 100 to 240V AC; Output: 19V DC, 3.42A
- Battery Pack – 2 x 60W Hot-swappable batteries (11.4V, 5400mAh)
(Optional) 2 x 90W Hot-swappable batteries (11.4V, 8000mAh) - Enclosure – ABS + PC plastic and magnesium-aluminum alloy with antimicrobial coating
- Dimensions (H x W x D) – 1.41 x 13.82 x 9.84 in/35.74 x 351 x 250 mm
- Weight – 7.5 lbs/3.4 kg
- Hazard of Electromagnetic Radiation to Ordnance (HERO) Testing – Yes
- Durability – IP65, MIL-STD-810H and MIL-STD-461G certified
- Regulatory- FCC Class B, CE, CB, RoHS, EPEAT, RCM compliant
- Temperature – Operation: -10°C to 60°C (14°F to 140°F), Optional -30°C to 60°C (-22°F to 140°F)
Storage: -55°C to 70°C (-67°F to 158°F) - Humidity – 0% to 90% non-condensing
- Camera – Front full-HD camera with auto white balance and gain/exposure control
- Mobile Broadband – 4G LTE/AWS
- GNSS – GPS
- Night Vision Screen – Luminance
Option 1: Daylight mode: 800 nits; NVIS mode: 0 to 20 nits. MIL-STD-3009 Class B compliant, providing clear readability of display with the naked eye in dark environments, does not interfere with NVGs. Option 2: Daylight mode: 800 nits; NVIS mode: 0 to 0.7 nits. MIL-STD-3009 Class B compliant, providing clear readability of display with NVGs in dark environments.
LT330 RUGGED LAPTOP
Built to perform. Specifications to prove it.
Available through M59 Technologies, this rugged hardware is designed for field, vehicle, industrial, public safety, utility, and other demanding work environments where reliability matters.
Review the specifications above for system details, connectivity, I/O ports,
environmental ratings, and available configurations. For complete technical
information, download the product datasheet below.
Know the hardware. Know the capabilities. Put it to work.
